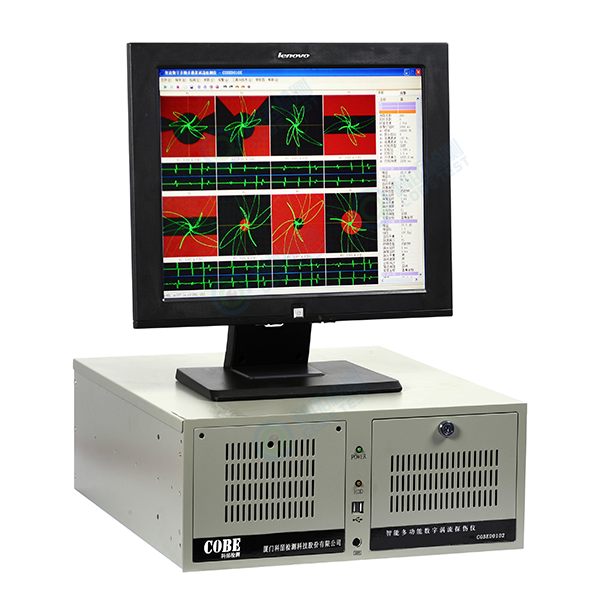

COBE-ET21 Multi-frequency Remote Field Eddy Current Detector

Main Technical Data

◆ Frequency range: 1 Hz ~ 10 MHz (remote field testing: 1HZ ~ 10KHZ)

◆ Optional frequency : 1~8

◆ 3 mixing unit (automatic mixing)

◆ Fast digital / analog electronic balance

◆ Automatic Phase / Defect depth curves show

◆ Real-time alarm output, alarm output delay

◆ Mass storage can store a variety of testing procedures and test data

◆ Classification statistical test results (tables and histogram display), to facilitate the cumulative analysis of test results

◆ Can be equipped with access absolute, differential and self-comparison forms, including through type, interpolation type, flat type, point, rotary and other probe

◆ USB Interface, It is convenient and fast to connect the computer

Features

◇ Real-time quantifying flaw size

◇The role of multi-frequency, effectively inhibit the other parts of the interference signal

◇With a conventional multi-frequency, multi-channel eddy current testing system of ordinary advanced performance

◇Through the pipe wall can be detected inside and outside surface cracks,pits, corrosion, thinning, wall materials, internal defects by switch into multiple single-frequency eddy current instrument
