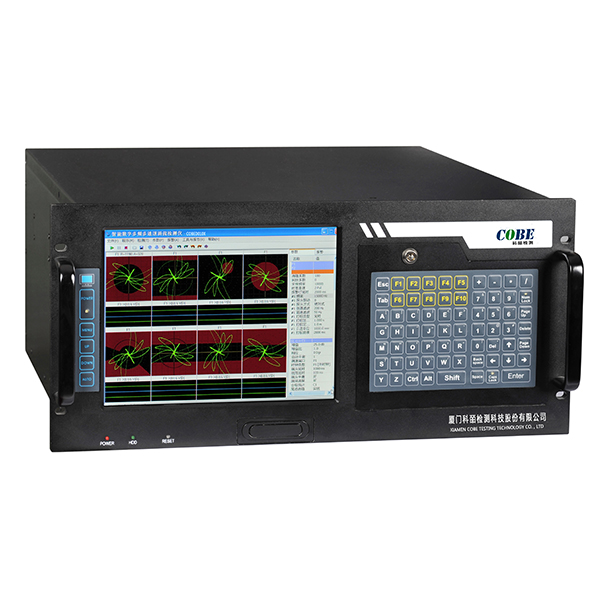

Eddy Current Flaw Detector , Eddy current testing

Main Technical Data

◆ Frequency range: 50 Hz -- 10 MHz

◆ Phase: 0 -- 359 ° continuous-tuning, step: 1 deg

◆ Gain: 0 -- 99.0 dB continuous-tuning, step: 0.5dB

◆ Display : Impedance, time-base

◆ Digital filtering: Low-pass : 10 Hz -- 10000Hz  High-pass:0 Hz -- 2000Hz

◆ Alarm mode: Multi-mode、non-constant-amplitude phase / amplitude domain Alarm、built in alarm

◆ Data storage: Testing Parameters , Testing Results, query, Playback file

◆ Testing speed : 0--500m/min

Features

◆ Intelligent digital design

◆ Professional provide monitoring alternatives

◆ High efficiency and high speed testing, can cooperate to automated machinery test

◆ The instrument may match with high accuracy time delay to sign-hit electronic module, the magnetic saturation as well as simple sign-hit machine, the probe head frame, to realized the aim the metallic pipe eddy current online automatic flaw testing.

◆ Use the most advanced computer digital electronic technology and digital eddy current testing technology , can achieve high-speed data processing

◆ Automatically create test report

Application field

Apply in testing of metal pipe & tube & bar. Particularly applicable to seamless Steel Pipe,oil pipe ,metallic welded pipe , nonferrous pipeline, stainless steel tube, alloy steel and carbon steel eddy current testing.
